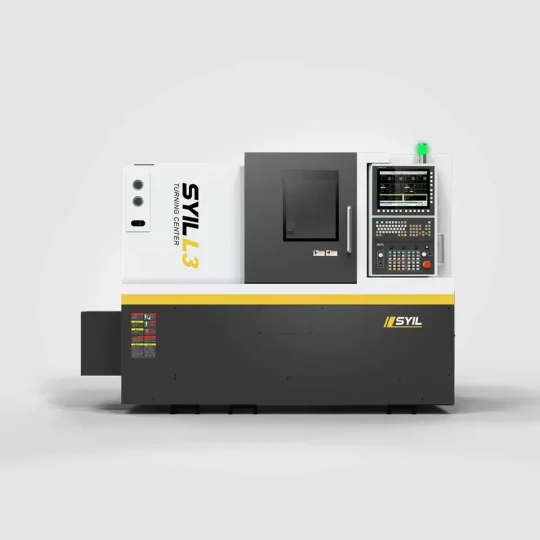

SYIL L3 CNC Lathe

High-Performance Turning

Features

  • 8-inch hydraulic chuck
  • Maximum swing diameter of ø19.7″ (ø500mm)
  • Through-hole diameter of ø2.48″ (ø63mm)
  • Optional Sauter servo turret
  • Power-driven tool speed of 5,000 rpm
  • BMT55 tool specification

Additional Options

  • Y-Axis
  • Dual Spindle
  • 5000 rpm Live Tooling by SAUTER 12-station BMT55 Turret
  • Tail Stock Unit
  • Tool Setter | Renishaw
  • Chip Conveyor
  • Bar Feeder
  • BMT55 0° Driven Tool Holder by SAUTER
  • BMT55 90° Driven Tool Holder by SAUTER

Country of Origin: Parts sourced from multiple countries. Machine tool assembled in China; packaged and shipped in the USA.

SYIL L3

The SYIL L3 is a massive step up in turning centers, featuring a German SAUTER Power Turret which significantly reduces tool change time, improves chip rigidity, and ensures you’re running at peak efficiency.

Chuck Size
8 inches (203.2mm)
Max. Swing Diameter Over Bed
ø21.65" (ø550mm)
Max. Swing Diameter Over Carriage
ø11.42" (ø290mm) (with Y axis: ø7.87" (200mm))
Max. Workpiece Length
19.69" (500mm) (with Y axis: 20.87" (530mm), with Counter Spindle: 17.72" (450mm))
Max. Workpiece Diameter
ø14.96" (ø380mm)
Floor Space (L × W × H)
98.43" x 67.72" x 68.50" (2500 x 1720 x 1740mm) (with Y axis: 105.51" x 68.90" x 72.83" (2680x 1750x 1850mm), with Counter Spindle: 105.51" x 68.90" x 72.83" (2680 x 1750 x 1850mm))
Spindle Max Speed
4000 rpm
Spindle Nose
A2-6
Spindle Bore Diameter
ø2.48" (ø63mm)
Through Spindle Bore Diameter
ø2.05" (ø52mm)
Spindle Power
14.75/20.12 hp (11/15kW)
Rapid Traverse
1181.1"/min (30m/min)
Tool Holder Type
Power Turret
Tools
12 Positions
Min./Max. Tool to Tool
0.2s / 0.5s
X Rapid Traverse
1181.1"/min (30m/min)
Z Rapid Traverse
1181.1"/min (30m/min)
Y Rapid Traverse
590.55"/min (15m/min)
X Travels
7.48" + 0.39" (190+10mm)
Z Travels
21.65" (550mm) (with Y axis: 19.29" ±1.97" (490±50mm))
Compact_Footprint_6609fae3-884a-4371-8ac2-92c4e86ccf0c

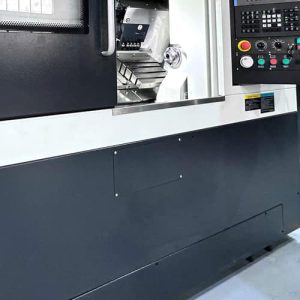

Compact Footprint

Compact machine layout that can be combined into a production line

TOC_Syil_5

THK

High-precision ball screws and linear guides

Optional_SAUTER_Servo_Turret

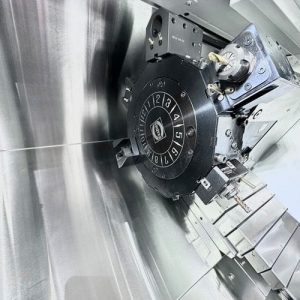

Optional SAUTER servo turret

5000rpm power tool spindle speed

High-Speed_Servo_Spindle_Unit_73b9b11d-05c4-44e9-8ee9-d909b36ad77b

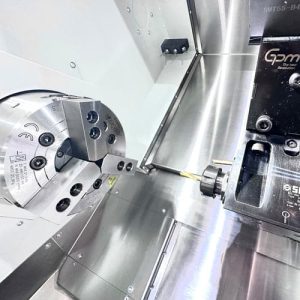

High-Speed Servo Spindle Unit

Maximum Spindle Speed 4500rpm

Why Choose the L3 CNC Lathe?

In the world of small parts production, hitting your tolerances is critical. You can count on SYIL CNC lathes to deliver on both efficiency and productivity where it matters most.

  • Compact and Expandable

    The SYIL L3 turning and milling composite machine tool features a German SAUTER power turret that greatly reduces tool changing time and improves chip rigidity. It has a compact footprint while providing a comfortable operating space and expandability.

    Various expansion function interfaces are reserved for achieving automated processing, such as automatic loading and unloading robots, automatic doors, automatic feeding, tool setters, and online workpiece inspection.

  • Modular by Design
    • Modular design with powerful expandable functions
    • Compact machine layout for flexible production line combination
    • Optional mineral casting bed structure
    • High rigidity and good thermal stability
    • Direct-drive servo system with high-precision linear guide
  • Built for production
    • Fully enclosed work area with stainless steel protective plates
    • User-friendly ergonomic design for operation and loading/Unloading
    • Designed for easy chip removal
    • Easy access to each unit for maintenance
    • Expandable and customizable automation system
  • Precise and accurate

    SYIL CNC Lathes are built with precision in mind. They utilize advanced technology and high-quality components to ensure accurate and precise machining results. This level of precision is crucial for everything from creating intricate designs to working on high-quantity critical tolerance projects.

Additional Features

Max Tool Shank Size
0.98" x 0.98" (25x25mm)
Max Tool Shank Diameter
ø1.57" (ø40mm)
Counter Spindle Chuck Size
6 inches (152.4mm)
Counter Spindle Rate/Max Speed
1750/6000 rpm
Counter Spindle Nose
A2-5
Counter Spindle Bore Diameter
ø2.20" (ø56mm)
Counter Spindle Through Bore Diameter
ø1.77" (ø45mm)
Counter Spindle Power
14.75 hp (11kW)
Tail Stock Travel from Chuck
18.31" (465mm) (with Y axis: 19.69" (500mm))
Tail Stock Rapid Traverse
1181.1"/min (30m/min)
Tail Stock Sleeve Taper
MT4
Finish Turning Cylindrical Accuracy
IT6
Finish Turning Parts Surface
Ra0.4-1.6
Finished Turning Parts Roundness
≤0.000118" (≤0.003mm)
Position Accuracy (X)
0.000197" (0.005mm)
Position Accuracy (Z)
0.000315" (0.008mm)
Repeat Accuracy (X)
0.000079" (0.002mm)
Repeat Accuracy (Z)
0.000157" (0.004mm)
Floor Space (L × W × H)
98.43" x 67.72" x 68.50" (2500 x 1720 x 1740mm) (with Y axis: 105.51" x 68.90" x 72.83" (2680x 1750x 1850mm), with Counter Spindle: 105.51" x 68.90" x 72.83" (2680 x 1750 x 1850mm))
Weight
8818.5 lbs (4000kg)
