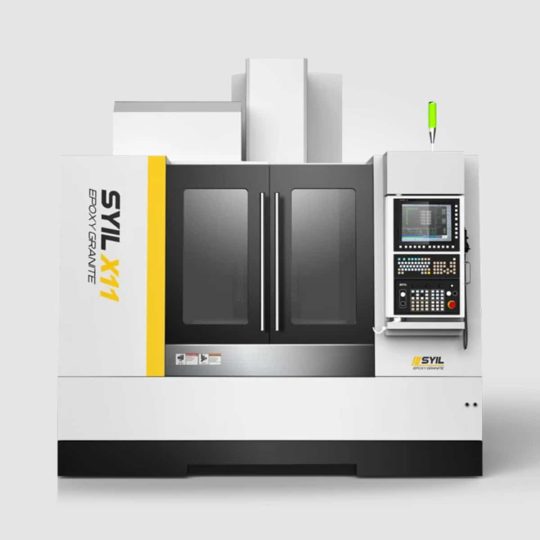

X11Main_6b64faa0-65fb-4765-a9c9-4ebfa5f66cea

SYIL X11 Vertical Machining Center

Designed for Large Workpieces

Features

  • Axis travels of 39.37″ x 19.69″ x 19.69″ (1000 x 500 x 500 mm)
  • 24-pocket high-speed servo auto tool changer
  • 12,000 rpm BT40 spindle
  • SCHNEEBERGER mineral casting

Customization Options

  • NC rotary table servo type | 4th axis 255 mm
  • Tail Stock for 255 mm NC rotary table
  • Probe System | Wireless type
  • Tool Setter Kits | Cable type TTC200
  • Filtermist
  • Central Coolant System(CTS 20 Bar)
  • Chip Conveyor

Country of Origin: Parts sourced from multiple countries. Machine tool assembled in China; packaged and shipped in the USA.

SYIL X11

This affordable and versatile vertical machining center is perfect for medium and large workpieces. Excelling in both ferrous and non-ferrous materials, the SYIL X11 delivers high-quality results while efficiently surpassing industry standards.

Table Size
1050 x 550mm
T-Slots (Number × Size × Distance)
18 x 5 x 90mm
Max. Table Load
600kg
Floor Size (L x W x H)
2700 × 2300 × 2800mm
X-Travel
1000mm
Y-Travel
500mm
Z-Travel
500mm
Distance between Spindle End and Tabletop
110 - 610mm
Distance between Spindle and Column Surface
650mm
Spindle Nose
BT40
Spindle Speeds
12,000 rpm / 10,000 rpm
Mechanism of Transmission
Direct/Belt
Cutting Feed
10,000mm/min
Rapid Traverse
30,000mm/min

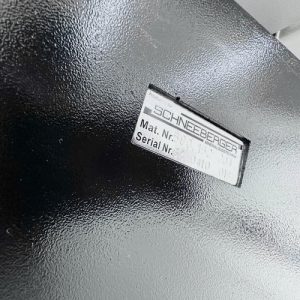

syil_x5_and_x7_schneeberger_mineral_casting

SCHNEEBERGER

High-precision mineral casting bed

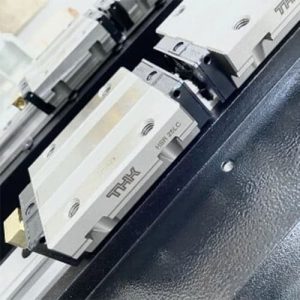

TOC_Syil_5

THK

High-precision ball screws and linear guides

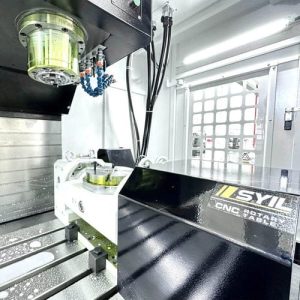

X11_4th_axis

4th Axis

Optional 4th-Axis

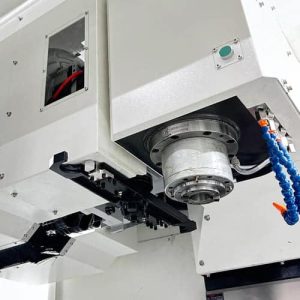

X11_24_pocket

High-Speed Servo Tool Changer

24 position, BT40

Why Choose the X11 Vertical Machining Center?

There are several advantages to using an X11 Vertical Machining Center for your machining needs.

  • Excellent Features
    • Strong and reliable performance
    • Compact machine layout
    • Mineral cast bed
    • High rigidity and good thermal stability
    • Electric spindle with water cooling function
  • Sleek Design
    • Fully enclosed working area with stainless steel guard plate
    • Designed for easy chip removal
    • Ergonomic operation and workpiece loading/unloading
    • Easy access to equipment units for maintenance
    • Expandable and customizable automation system
  • Versatile and Cost-effective

    The cost-effective X11 offers a compact design, making it ideal for companies looking to optimize their space.

    Its user-friendly interface and software ensure easy operation, while its high-quality construction guarantees durability.

    Whether you’re machining a variety of materials, or want an affordable solution for your production line, the SYIL X11 is a smart investment that checks both boxes.

Additional Features

Tool Type
Arm Type
Tool Storage Capacity
24 Positions
Max. Tool Diameter
120mm
Max. Tool Length
300mm
Max. Tool Weight
7Kg
Tool to Tool
2.5s
Spindle Motor Output (Rate/Max)
11/17kW
Drive Motors (X, Y, Z)
3.9/3.9/5.9kW
Power Source
AC380V/ 3-Phase
Floor Space (L × W × H)
2700 × 2300 × 2800mm
Weight
7000kg
