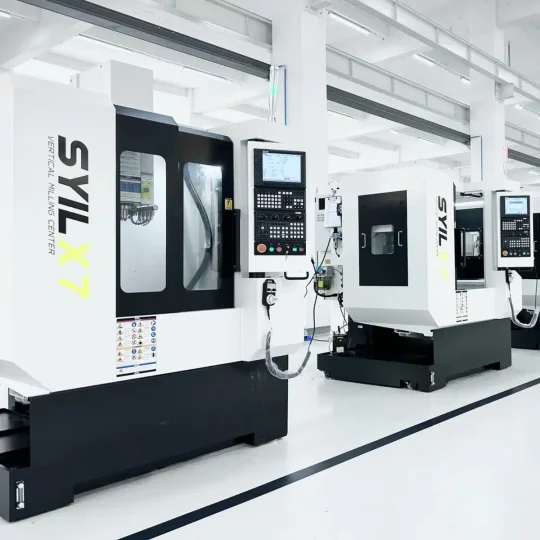

X7main

SYIL X7 Vertical Mill

Small Size. Big Benefits.

Economy Package

  • Axis travels of 15.7″ × 11.8″ × 15″ (400 × 300 × 380 mm)
  • 12-pocket umbrella automatic tool changer
  • 12,000 rpm BT30 spindle
  • SCHNEEBERGER mineral casting

Customization Options

  • Automatic Tool Changer with 16-pocket BT30 Type | Include a tool changer with BT30 power drawbar Arm type | Fits with any type of enclosure
  • Spindle | 30,000 rpm HSK-E40 Build-in Type with Power Drawbar System
  • NC rotary table servo type | 4th axis 125mm size kits including servo motors and driver
  • Tail Stock for 125mm NC rotary table
  • Probe System | Wireless type
  • Tool Setter Kits | Cable type TTC200
  • Filtermist
  • Central Coolant System (CTS 20 Bar for HSK spindle only)
  • Chip Conveyor

Country of Origin: Parts sourced from multiple countries. Machine tool assembled in China; packaged and shipped in the USA.

SYIL X7

A compact, cost-effective CNC milling machine that excels in heavy-duty projects with its powerful, precise, and robust design. Effortlessly cut through tough materials and deliver superior surface results.

Table Size
27.6" × 11.8" (700 × 300mm)
T-slots (Number × Size × Distance)
3 × 14 × 3.9" (100mm)
Max. Table Load
330lb (150kg)
Floor Size (L x W x H)
70.9" × 63" × 88.6" (1800 × 1600 × 2250mm)
X-Travel
15.7" (400mm)
Y-Travel
11.8" (300mm)
Z-Travel
15" (380mm)
Distance between spindle end and tabletop
5.9"-20.9" (150-530mm)
Distance between spindle and column surface
14.1" (358mm)
Spindle Nose
BT30
Spindle Speeds
12,000 RPM
Mechanism of Transmission
Belt
Cutting Feed
393.7 ipm (10 m/min)
Rapid Traverse
1,181.1 ipm (30 m/min)
syil_x5_and_x7_schneeberger_mineral_casting

SCHNEEBERGER

Mineral cast machine frame

TOC_Syil_5

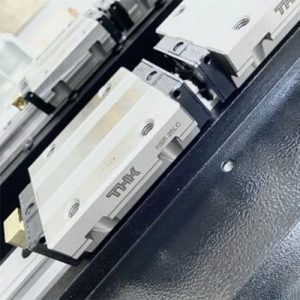

THK

High-precision ball screws and linear guides

TOC_Syil_3

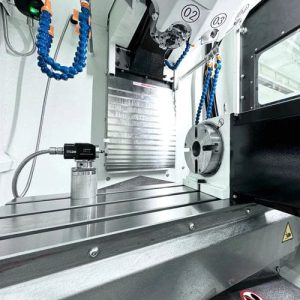

4th Axis

Add a 4th axis to your 3-axis machining center

TOC_Syil_6

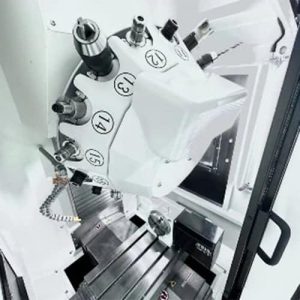

High-speed Servo Tool Changer

12 positions BT30

Why Choose the X7 Small CNC Machine?

There are several advantages to using an X7 Small CNC machine for your machining needs.

  • Powerful Features
    • Powerful and stable performance
    • Compact machine layout
    • Mineral cast bed with high rigidity and good thermal stability
    • Electric spindle with water cooling function
  • Superior Design
    • Fully enclosed workspace with stainless steel protection panels
    • Easy chip evacuation design
    • Ergonomic operation and workpiece loading/Unloading design
    • Easy access to all machine components for convenient maintenance
    • Expandable and customizable automation system
  • Best value in class

    The small SYIL X7 CNC machine offers a small footprint with unprecedented speed. It provides full CNC capabilities in a compact space, ensuring high processing quality. Moreover, this efficiently competent CNC mill comes at an affordable price. Due to its excellent competency and high affordability rates, it is the right match for all CNC cuttings at low unit costs.

  • Prototyping and Small-Scale Production

    A small CNC milling machine, like the SYIL X7, is perfect for prototyping and small-scale production projects. Its compact size allows for easy setup in limited spaces while still maintaining high precision and power. With its versatile capabilities, you can quickly iterate designs and produce accurate parts in a cost-effective manner.

    Rapid Prototyping: Bring your ideas to life quickly and efficiently

    • Create functional prototypes in a fraction of the time compared to traditional manufacturing methods
    • Test and refine designs before committing to large-scale production

    Small Batch Manufacturing: Produce limited quantities of products with ease

    • Efficiently manufacture small runs of products, reducing waste and costs
    • Respond quickly to market demands and customer preferences
  • Power and Precision

    With its high power and spindle speed, the SYIL X7 small CNC machine delivers exceptional performance for small-scale businesses. It allows for efficient and fast machining, resulting in increased production capacity and reduced labor costs. The superior precision and accuracy of the SYIL X7 ensure that every part is manufactured to exact specifications, guaranteeing consistent quality and customer satisfaction.



    The SYIL X7 is capable of handling a wide range of projects, from intricate designs to larger-scale productions. This versatile machine can work with various metals, including aluminum, steel, brass, and more. Its cutting-edge technology enables it to tackle complex tasks with ease while maintaining tight tolerances.



    Compared to its competitors, the SYIL X7 stands out in terms of both power and precision. Its robust construction ensures stability during operation while delivering maximum power output. With its advanced control system and precise positioning capabilities, the SYIL X7 guarantees accurate results time after time.



    Investing in a small CNC machine like the SYIL X7 is an investment in your business’s future success. By maximizing efficiency through increased productivity and reducing manual labor costs, you can significantly boost your profits while meeting your customers’ demands for high-quality products delivered on time.

  • Total Game Changer

    The SYIL X7 is a compact machining center that offers a wide range of benefits for small manufacturing businesses. With its advanced features and efficient design, this machine maximizes productivity and helps save time and costs. It is an excellent choice for small business owners in need of a cost-effective CNC machine because of its:

    • Compact Size: The SYIL X7 Mill is specifically designed to fit in small spaces, making it ideal for small workshops and manufacturing facilities with limited floor space. Despite its compact size, this machine offers a spacious work envelope, allowing for versatile machining capabilities.
    • Higher Rapids: The SYIL X7 comes equipped with higher rapids, allowing for faster movements and reduced non-cutting time. This feature significantly increases productivity, as the machine can quickly move from one position to another, minimizing idle time and maximizing efficiency.
    • Vertical Mills: Vertical machining centers are known for their versatility and high precision. The SYIL X7 Mill is a vertical mill that offers exceptional accuracy and repeatability, ensuring consistent part quality throughout the production process. The vertical design also allows for easy access to the workpiece, simplifying setup and reducing the risk of errors.
    • Faster Spindle Speed: The SYIL X7 is equipped with a high-speed spindle that allows for faster cutting speeds. This feature enables the machine to complete machining operations in less time, resulting in improved productivity

Additional Features

Tool Type
Umbrella Type
Tool Storage Capacity
12 Positions
Max. Tool Diameter
2.5" (63mm)
Max. Tool Length
7.9" (200mm)
Max. Tool Weight
6.6lb (3kg)
Tool to Tool
1.5s
(Syntec) Spindle Motor Output (Rate/Max)
8.2/12 kW
(Syntec) Drive Motors (X, Y, Z)
1.1/1.7/2.4 kW
(Syntec) Power source
AC380V/3-Phase
(Syntec) Power
14 kVA
(LNC) Spindle Motor Output (Rate/Max)
2.2/3.0 kW
(LNC) Drive Motors (X, Y, Z)
0.85/1.3/1.3 kW
(LNC) Power source
AC220V/1-Phase
(LNC) Power
7 kVA
(Siemens 828) Spindle Motor Output (Rate/Max)
7.5/11 kW
(Siemens 828) Drive Motors (X, Y, Z)
1.1/2.2/2.2 kW
(Siemens 828) Power source
AC380V/3-Phase
(Siemens 828) Power
14 kVA
Floor size (L × W × H)
70.9" × 63" × 88.6" (1800 × 1600 × 2250mm)
Weight
4,850lb (2200kg)
