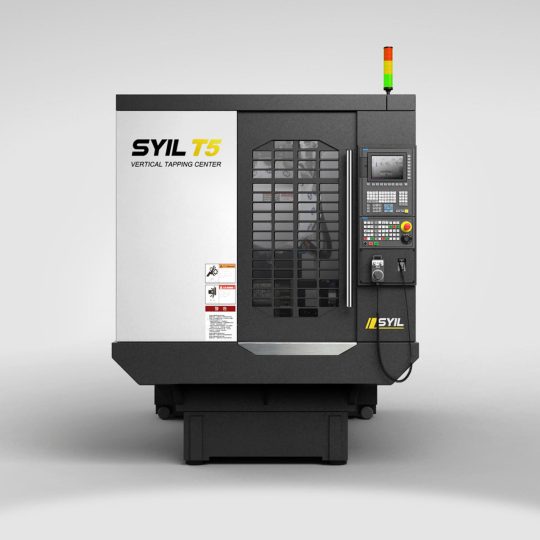

SYIL T5 Drill Tap Mill

Enhanced Efficiency and Accuracy

Features

  • Axis Travels of 23.62″ x 17.72″ x 12.99″ (600 x 450 x 330 mm)
  • 21-pocket High-Speed Servo Tool Changer
  • 20,000 rpm Direct BT30 Spindle
  • High-Precision Mineral Casting
  • THK Ball Screw and Linear Guide

Customization Options

  • NC rotary table DDR type | 4th axis 170mm size kits including servo motors and driver | Taiwan Made and DDR type
  • NC rotary table Gear type | 4th axis 170mm size kits including servo motors and driver | Taiwan Made and Gear type
  • Tailstocks for gear type 4 axis
  • Probe System | Wireless type
  • Tool Setter Kits | Cable type TTC200
  • Filtermist

Country of Origin: Parts sourced from multiple countries. Machine tool assembled in China; packaged and shipped in the USA.

SYIL T5

The SYIL T5 drilling/tapping machine automates your process, and has the effect of increasing your efficiency and productivity while reducing labor costs.

Table Size
700 x 420mm
T-Slots (Number x Size x Distance)
3 x 14.3 x 125mm
Max. Table Load
250kg
Floor Space (L × W × H)
2098 x 1550 x 2068mm
X Travel
600mm
Y Travel
450mm
Z Travel
330mm
Distance between Spindle End and Tabletop
150-480mm
Distance between Spindle and Column Surface
320mm
Spindle Nose
BT30
Spindle Speeds
20,000 rpm
Mechanism of Transmission
Direct
Cutting Feed
20,000mm/min
Rapid Traverse
48,000mm/min

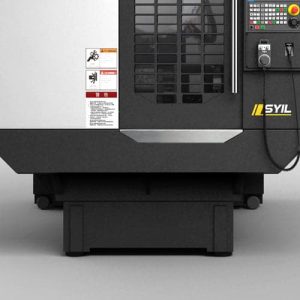

Epoxy_Granite

Expoxy Granite Frame

Precision mineral bed

TOC_Syil_5

THK

High-precision ball screws and linear guides

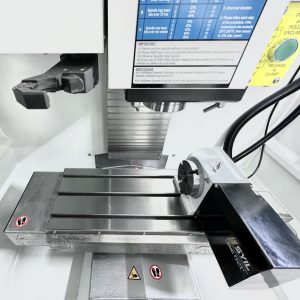

T5_4th-Axis

4th-Axis

Optional 4th-Axis

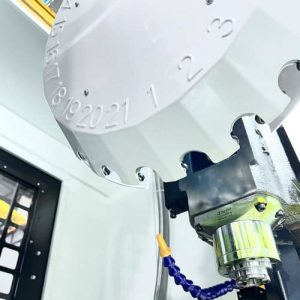

T5_ATC

High-Speed Servo Tool Changer

21 positions BT30

Why Choose the T5 Drill Tap Mill?

Using a drilling and tapping machine offers several advantages in industrial manufacturing. Firstly, it significantly increases efficiency and productivity by automating the process of drilling holes and creating threads. This allows for faster production times and higher output rates, saving valuable time for manufacturers. Additionally, drilling and tapping machines reduce the labor costs typically associated with manual drilling and tapping processes. By eliminating the need for constant supervision or physical exertion from workers, companies can allocate their resources more effectively.

  • Powerful Features
    • Powerful and reliable performance
    • Compact machine layout, suitable for production line integration
    • Mineral-cast bed structure
    • High rigidity and good thermal stability
    • Direct drive servo motor, high precision guideways
  • Sleek Design
    • Fully enclosed work area with stainless steel protection plates
    • Easy chip disposal design
    • Ergonomic operation and loading/Unloading design concept
    • Easy access to equipment units for easy maintenance
    • Expandable and customizable automation system
  • Automation

    Significantly increases efficiency and productivity by automating the process of drilling holes and creating threads. This allows for faster production times and higher output rates, saving valuable time for manufacturers. Additionally, with the ability to accurately drill and tap with precision, this machine ensures consistent results every time.

  • Save Time and Money

    Reduce labor costs associated with manual drilling and tapping processes! By eliminating the need for constant supervision or physical exertion from workers, companies can allocate their resources more effectively. Moreover, using a CNC drill tap machine like the SYIL T5 provides versatility across various applications in industries such as automotive parts manufacturing or aerospace engineering—making it an ideal choice for corporations looking to streamline their operations without compromising quality.

  • High-Quality and Reliable

    When you buy a CNC drilling and tapping machine from SYIL Machine Tools, you can trust that you are getting a high-quality and reliable product. Our machines are built with precision engineering and designed to withstand the demands of industrial manufacturing. You can count on consistent performance and accuracy, ensuring efficient production processes.

  • Customizable

    SYIL Machine Tools offers customizable options for our CNC drilling and tapping machines. We understand that every manufacturer has unique needs, so we provide flexible solutions to meet your specific requirements. From different spindle configurations to advanced control systems, you can customize your machine to optimize productivity and achieve the desired results.

Additional Features

Tool Type
Wheel Type
Tool Storage Capacity
21 Positions
Max. Tool Diameter
63mm
Max. Tool Length
250mm
Max. Tool Weight
3Kg
Tool to Tool
1s
Spindle Motor Output (Rate/Max)
3.7/5.5kW
Drive Motor (X, Y, Z)
1.5kW
Power Source
AC380V/ 3-Phase
Floor Space (L × W × H)
2098 x 1550 x 2068mm
Net Weight
2150kg
Gross Weight
2250kg
