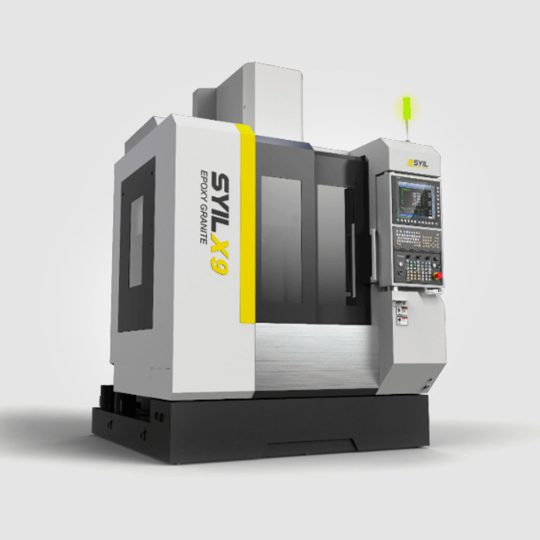

SYIL X9 Vertical Mill

First-Class Components and Solid Construction.

Standard Package

  • Axis travels of 29.9″ × 19.7″ × 19.7″ (760 × 500 × 500mm)
  • 24-pocket high-speed servo tool changer
  • 10,000 rpm BT40 spindle
  • SCHNEEBERGER mineral casting

Customization Options

  • 24,000 rpm HSK-A63 Build-in Type with Power Drawbar System
  • NC rotary table servo type | 4th axis 255mm size kits including servo motors and driver
  • Tail Stock for 255mm NC rotary table
  • Probe System | Wireless type
  • Tool Setter Kits | Cable type TTC200
  • Filtermist
  • Central Coolant System (CTS 20 Bar)
  • Chip Conveyor

Country of Origin: Parts sourced from multiple countries. Machine tool assembled in China; packaged and shipped in the USA.

SYIL X9

Excellent Machining Capabilities. Handling a Full Range of Operations.

Table Size
33.9" × 19.7" (860 × 500mm)
T-Slots (Number × Size × Distance)
18" × 5" × 3.9" (100mm)
Max. Table Load
1,102lb (500kg)
Floor Size (L x W x H)
72.8" × 88.4" × 110.2" (1850 × 2245 × 2800mm)
X-Travel
29.9" (760mm)
Y-Travel
19.7" (500mm)
Z-Travel
19.7" (500mm)
Distance between spindle end and tabletop
100-600mm
Distance between spindle and column surface
530mm
Spindle Nose
BT40
Spindle Speeds
10,000 rpm
Mechanism of Transmission
Belt Type / Direct Type
Cutting Feed
393.7 ipm (10 m/min)
Rapid Traverse
1,181.1 ipm (30 m/min)
syil_x9_mineral_casting_AI

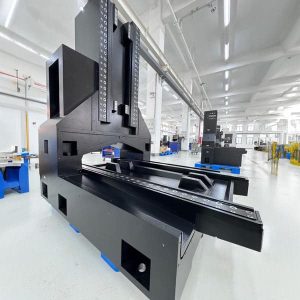

SCHNEEBERGER

Mineral cast machine frame

TOC_Syil_5

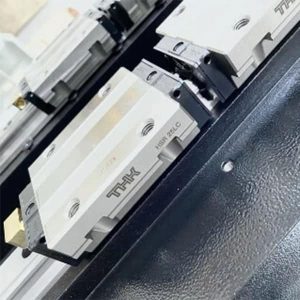

THK

High-precision ball screws and linear guides

TOC_Syil_3

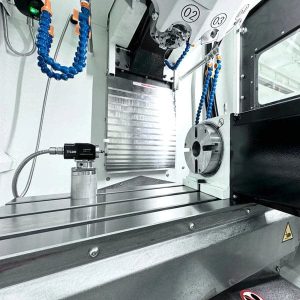

4th Axis

Add a 4th axis to your 3-axis machining center

Why Choose the

Additional Features

Tool Holder
Arm Type
Tool Storage Capacity
24 Positions
Max. Tool Diameter
125mm
Max. Tool Length
240mm
Max. Tool Weight
7kg
Tool to Tool
2s
Spindle Motor Output (Rate/Max)
11/17 kW
Drive Motors (X and Y-Axis)
3.9/3.9/5.9 kW
Floor Space (L × W × H)
1850 × 2245 × 2800mm
Weight
6000kg
