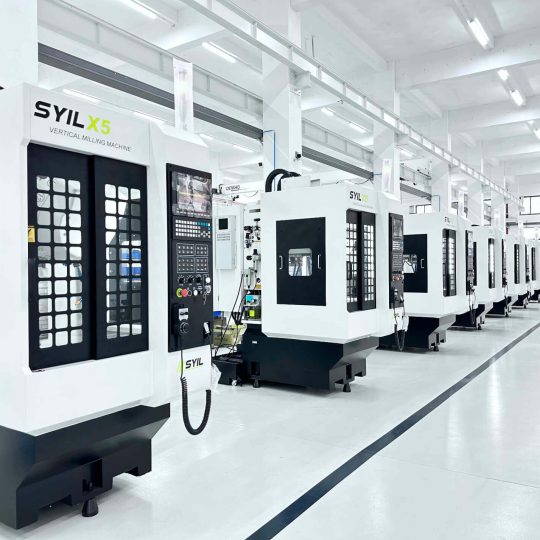

syil x5 cnc machine in production

SYIL X5 Vertical Mill

Space- And Money-Saving CNC Machine.

Premium Package

  • Axis travels of 11.8″ × 10.2″ × 11.8″ (300 × 260 × 300 mm)
  • 16-pocket servo automatic tool changer
  • 20,000 rpm direct-coupled BT30 spindle
  • SCHNEEBERGER mineral cast bed
  • 3.3 ft (1 meter) width for narrow spaces

Customization Options

  • NC rotary table servo type | 4th axis 125mm size kits including servo motors and driver
  • Tail Stock for 125mm NC rotary table
  • Probe System | Wireless type
  • Tool Setter Kits | Cable type TTC200

Country of Origin: Parts sourced from multiple countries. Machine tool assembled in China; packaged and shipped in the USA.

SYIL X5

A versatile CNC machine, perfect for hobbyists and professionals. Compact design, high precision, and affordable pricing.

Table Size
22″ × 10.2" (560 × 260mm)
T-Slots (Number × Size × Distance)
3 x 14" × 3.15" (80mm)
Max. Table Load
330lb (150kg)
Floor Size (L x W x H)
79.5" × 39.4" × 92.9" (2020 × 1000 × 2360mm)
X-Travel
11.8″ (300mm)
Y-Travel
10.2" (260mm)
Z-Travel
11.8" (300mm)
Distance between spindle end and tabletop
5.9"-17.7" (150-450mm)
Distance between spindle and column surface
13" (330mm)
Spindle Nose
BT30
Spindle Speeds
20,000 rpm
Mechanism of Transmission
Direct
Cutting Feed
393.7 ipm (10 m/min)
Rapid Traverse
1,181.1 ipm (30 m/min)

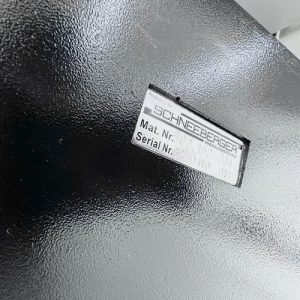

syil_x5_and_x7_schneeberger_mineral_casting

SCHNEEBERGER

Mineral cast machine frame

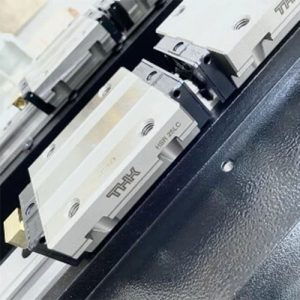

TOC_Syil_5

THK

High-precision ball screws and linear guides

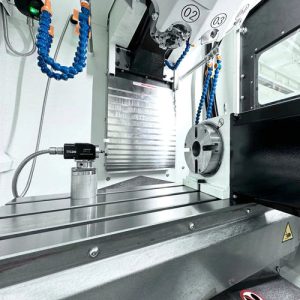

TOC_Syil_3

4th Axis

Add a 4th axis to your 3-axis machining center

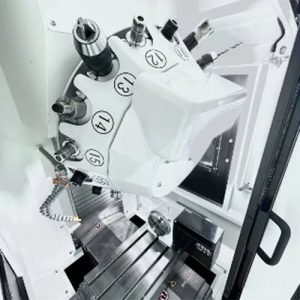

TOC_Syil_6

High-speed Servo Tool Changer

16 positions BT30

Why Choose the X5 Mini CNC Mill?

There are several advantages to using an X5 mini CNC machine for your machining needs.

  • Compact Size

    The X5 Mini CNC machines are smaller in size compared to their larger counterparts, making them ideal for limited space environments such as workshops or home garages. Their compact design allows for easy transportation and storage.

  • Cost Effective

    SYIL X5 Mini CNC machines are generally more affordable than larger CNC machines. They offer a cost-effective solution for hobbyists, small businesses, or individuals who are just starting with CNC machining.

  • Versatile

    Despite their smaller size, our mini CNC mills can still perform a wide range of machining operations. They are capable of milling, drilling, cutting, and engraving materials like wood, plastic, and various metals. This versatility makes them suitable for a variety of applications.

  • User Friendly

    Syil Mini CNC machines are designed with user-friendliness in mind. They come with intuitive control panels and software interfaces, making them easy to operate, even for beginners. Additionally, they offer features like automatic tool changers and preset cutting paths, further simplifying the machining process.

  • Precise and Accurate

    Syil Mini CNC machines are built with precision in mind. They utilize advanced technology and high-quality components to ensure accurate and precise machining results. This level of precision is crucial for creating intricate designs or working on small-scale projects.

  • Time Saving

    With automated features and efficient machining capabilities, our mini CNC machines can save you a significant amount of time compared to traditional manual methods.

Additional Features

Tool Type
Wheel Type
Tool Storage Capacity
16 Positions
Max. Tool Diameter
2.5" (63mm)
Max. Tool Length
7.9" (200mm)
Max. Tool Weight
6.6lb (3kg)
Tool to Tool
1s
(Syntec) Spindle Motor Output (Rate/Max)
5.5/7.5 kW
(Syntec) Drive Motors (X,Y,Z)
1/1.7/2.4 kW
(Syntec) Power Source
AC380V/3-Phase
(Syntec) Power
12 kVA
Floor size (L × W × H)
79.5" × 39.4" × 92.9" (2020 × 1000 × 2360mm)
Weight
4806lb (2180kg)
